The Matrix That Rotates, Stretches, and Rotates Again

An intuitive tour of the SVD: start with what a matrix does to a circle, and the factorisation, the condition number, and image compression all fall out of the same picture.

Every matrix turns space, stretches it, and turns it again — and that one fact prices image compression in decibels per byte, predicts when a solver will return garbage, and explains why nobody computes the SVD from A-transpose-A. With two widgets you can drive yourself.
Linear Algebra
Numerical Methods
Mathematics
Author

Ravi Kalia

Published

August 19, 2026

Cover card reading The Matrix That Rotates, Stretches, and Rotates Again.

A grayscale photograph is a matrix. One number per pixel, nothing more. The one below is 512 rows by 512 columns, so it is 262,144 numbers, and if you stored it as raw bytes that is exactly what it would cost you.

Almost all of those numbers are redundant. Neighbouring rows of pixels look like each other, and so do neighbouring columns, and a factorisation finds that redundancy knowing nothing about faces, fabric or sky — only the arithmetic. You can then throw away most of the matrix and still recognise the picture, and price the trade exactly: so many decibels of quality for so many bytes.

That factorisation is the singular value decomposition. Most introductions write it down first and explain it afterwards, which hides what it actually is. This one starts somewhere else: with a question about geometry. What can a matrix do to space? The answer turns out to be short, and everything else in this post — the compression, the condition number, the reason no one computes the SVD the obvious way — is a consequence of it.

Code
import json
import sys
from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np

sys.path.insert(0, "src")

import data as filip          # NIST StRD Filip loader
import imagery as im          # the photograph and its SVD

PURPLE, TEAL, AMBER = "#4A3AA7", "#1D6E6E", "#9A5B00"
INK, MUTED, RULE = "#1F2430", "#5F6672", "#D8DBE2"
PAPER = "#F4F5F7"

plt.rcParams.update({
    "figure.facecolor": PAPER, "axes.facecolor": "white",
    "axes.edgecolor": RULE, "axes.labelcolor": INK, "text.color": INK,
    "xtick.color": MUTED, "ytick.color": MUTED, "font.size": 10,
    "axes.grid": True, "grid.color": RULE, "grid.alpha": 0.7,
    "axes.spines.top": False, "axes.spines.right": False,
})

# The figures and the widgets read the same committed payload, so a number
# quoted in the prose cannot drift from the number on the slider.
WIDGET = json.loads(Path("widget-data/image.json").read_text())
MOVIES = json.loads(Path("widget-data/movielens.json").read_text())

Every matrix turns, stretches, then turns again

Pick any real matrix, square or not, and feed it every vector of length one. In two dimensions those vectors trace a circle, and their images trace some new shape. The question is which shapes are possible.

The answer is that only one shape is possible: an ellipse. Not usually an ellipse, not an ellipse for nice matrices. Always. A matrix can stretch the circle unevenly, spin it, flip it, or squash it flat onto a line, but it cannot bend it into anything with a corner or a wobble. That constraint is what makes the rest of this post possible, and it is easiest to believe by watching the circle deform in three moves.

Code
A2 = np.array([[1.0, 1.2], [0.0, 1.0]])
U2, s2, Vt2 = np.linalg.svd(A2)

theta = np.linspace(0, 2 * np.pi, 361)
circle = np.stack([np.cos(theta), np.sin(theta)])
marks = np.stack([np.cos(np.arange(4) / 4 * 2 * np.pi + 0.35),
                  np.sin(np.arange(4) / 4 * 2 * np.pi + 0.35)])

stages = [
    (np.eye(2), "unit circle"),
    (Vt2, r"after $V^\mathsf{T}$ — a rotation"),
    (np.diag(s2) @ Vt2, r"after $\Sigma V^\mathsf{T}$ — the stretch"),
    (A2, r"after $A = U\Sigma V^\mathsf{T}$"),
]

fig, axes = plt.subplots(1, 4, figsize=(10.5, 3.0))
for ax, (T, title) in zip(axes, stages):
    shape = T @ circle
    ax.plot(*np.stack([np.cos(theta), np.sin(theta)]), ls="--", lw=1,
            color=RULE, zorder=1)
    ax.fill(*shape, color=PURPLE, alpha=0.10, zorder=2)
    ax.plot(*shape, color=PURPLE, lw=1.8, zorder=3)
    ax.scatter(*(T @ marks), s=22, color=PURPLE, zorder=4)
    for i, colour in enumerate((TEAL, AMBER)):
        image = T @ Vt2[i]
        ax.annotate("", xy=image, xytext=(0, 0),
                    arrowprops=dict(arrowstyle="-|>", color=colour, lw=2))
    ax.set_title(title, fontsize=9.5)
    ax.set_xlim(-2.05, 2.05); ax.set_ylim(-2.05, 2.05)
    ax.set_aspect("equal"); ax.set_xticks([]); ax.set_yticks([])
    ax.grid(False)
fig.tight_layout()
plt.show()

print(f"singular values: sigma1 = {s2[0]:.4f}, sigma2 = {s2[1]:.4f}")

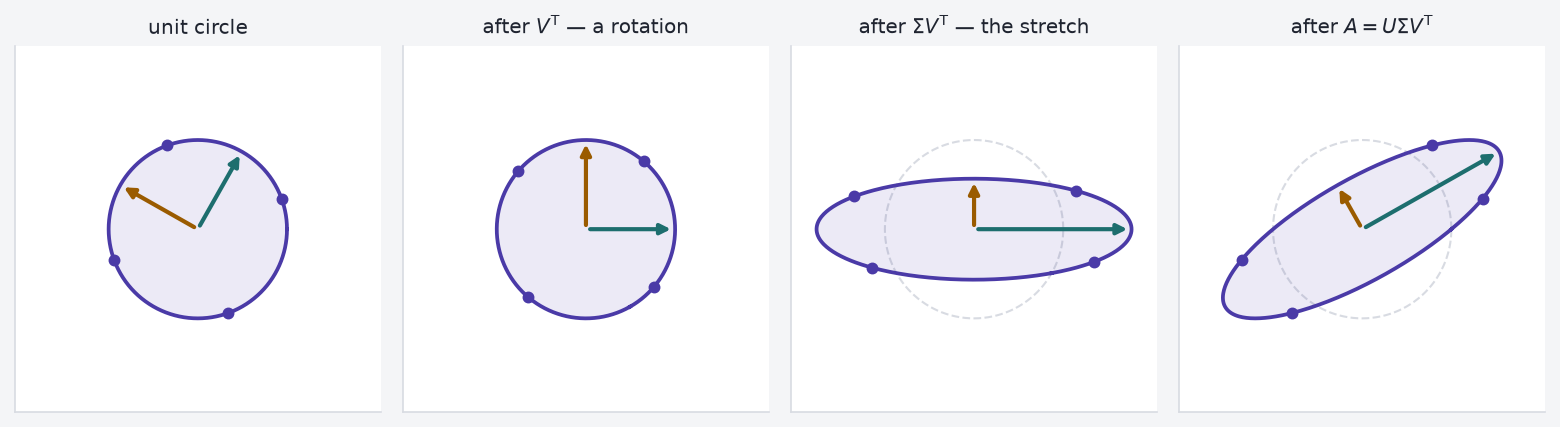

Figure 1: One matrix, four moments. A shear takes the unit circle to an ellipse in three steps: a rotation that moves nothing but the labelled directions, a stretch along the axes, and a second rotation into the final pose. The dashed circle marks where things started.
singular values: sigma1 = 1.7662, sigma2 = 0.5662

Read the panels left to right and you have the whole decomposition. The first move is a rotation: the circle is unchanged as a set, but the arrows swing onto the axes. The second stretches along those axes — by 1.766 one way and 0.566 the other — which is what makes it an ellipse. The third rotates that ellipse into its final pose.

Three moves, three matrices, and the formula has somewhere to land. Call the first rotation \(V^\mathsf{T}\), the stretch \(\Sigma\), and the second rotation \(U\). Applied in order they send \(x\) to \(U\Sigma V^\mathsf{T} x\), which must equal \(Ax\) for every \(x\), so

\[A = U\Sigma V^\mathsf{T}.\]

\(U\) and \(V\) are orthogonal — their columns are perpendicular unit vectors, so they rotate and reflect without changing any length. The diagonal entries \(\sigma_1 \ge \sigma_2 \ge \dots \ge 0\) of \(\Sigma\) are the singular values, and they are the entire stretching budget of the matrix.

A different matrix should change the ellipse and the two numbers, and nothing else about the story. The widget below computes a real SVD of whatever you type, in the browser, by exactly the argument the next section makes.

Widget 1 — your matrix, your ellipse runs in your browser

Try the near-singular preset: the ellipse collapses towards a line, σ₂ drops near zero, and the condition number blows up. That is the same failure the Filip dataset shows later, in eleven dimensions instead of two.

The static figure above is that widget at its default matrix, so with scripts off you have already seen the argument; the widget only lets you check it on matrices you chose rather than one I chose.

The decomposition exists because \(A^\mathsf{T}A\) hands you the right basis

Watching one matrix behave is not a proof. The claim is that every matrix factors this way, and the reason is a short piece of algebra that is worth seeing, because it also explains where the singular values come from.

Start from a matrix you know is well behaved: \(A^\mathsf{T}A\). It is square, and it is symmetric, since \((A^\mathsf{T}A)^\mathsf{T} = A^\mathsf{T}A\). The spectral theorem says a real symmetric matrix has a full set of orthonormal eigenvectors — this is the result the companion post on eigendecomposition develops. Call them \(v_1, \dots, v_n\) with \(A^\mathsf{T}A\,v_i = \lambda_i v_i\).

Now ask what happens to those particular directions under \(A\) itself. Take the inner product of two of their images:

\[\langle Av_i, Av_j \rangle = v_i^\mathsf{T} A^\mathsf{T} A v_j = \lambda_j\, v_i^\mathsf{T} v_j = \lambda_j\, \delta_{ij}.\]

For \(i \ne j\) that is zero. The images \(Av_i\) are perpendicular to each other, automatically, with no further conditions on \(A\). And setting \(i = j\) gives \(\|Av_i\|^2 = \lambda_i\), so the length of each image is \(\sqrt{\lambda_i}\) — which is the singular value \(\sigma_i\). Divide each nonzero image by its length to get the orthonormal \(u_i\), and \(Av_i = \sigma_i u_i\) is the decomposition, column by column.

The load-bearing part is the first line: these directions stay perpendicular, and a generic perpendicular pair does not. That is checkable in three lines.

Code
rng = np.random.default_rng(20260819)
A3 = rng.standard_normal((3, 3))

# The eigenvectors of A^T A, ordered by eigenvalue.
lam, V3 = np.linalg.eigh(A3.T @ A3)
order = np.argsort(lam)[::-1]
lam, V3 = lam[order], V3[:, order]

# An arbitrary orthonormal pair, built by rotating that basis inside its own
# plane -- still perpendicular, still unit length, just not the special pair.
c, s = np.cos(0.6), np.sin(0.6)
w1, w2 = c * V3[:, 0] + s * V3[:, 1], -s * V3[:, 0] + c * V3[:, 1]

print(f"before A:  v1 . v2 = {V3[:, 0] @ V3[:, 1]: .3e}    w1 . w2 = {w1 @ w2: .3e}")
print(f"after  A: Av1 . Av2 = {(A3 @ V3[:, 0]) @ (A3 @ V3[:, 1]): .3e}   Aw1 . Aw2 = {(A3 @ w1) @ (A3 @ w2): .3e}")
print(f"sqrt(lambda_i) = {np.sqrt(lam)}")
print(f"numpy's sigma  = {np.linalg.svd(A3, compute_uv=False)}")
before A:  v1 . v2 =  5.551e-17    w1 . w2 =  1.665e-16
after  A: Av1 . Av2 =  1.110e-16   Aw1 . Aw2 = -1.999e+00
sqrt(lambda_i) = [2.38629685 1.18499154 0.65058306]
numpy's sigma  = [2.38629685 1.18499154 0.65058306]

Both pairs start perpendicular to machine precision. After the matrix acts, one still is and the other is not, by about thirteen orders of magnitude. The eigenvectors of \(A^\mathsf{T}A\) are not merely a convenient basis — they are the only one whose perpendicularity survives — and \(\sqrt{\lambda_i}\) reproduces what np.linalg.svd returns.

Code
lam2, V2e = np.linalg.eigh(A2.T @ A2)
V2e = V2e[:, np.argsort(lam2)[::-1]]
c, s = np.cos(0.6), np.sin(0.6)
W2e = np.stack([c * V2e[:, 0] + s * V2e[:, 1], -s * V2e[:, 0] + c * V2e[:, 1]], axis=1)

def angle(m):
    a, b = m[:, 0], m[:, 1]
    return np.degrees(np.arccos(np.clip(a @ b / (np.linalg.norm(a) * np.linalg.norm(b)), -1, 1)))

fig, axes = plt.subplots(1, 2, figsize=(8.5, 4.0))
for ax, (M, shape, title) in zip(axes, [
    (np.eye(2), circle, f"before: both pairs at 90°"),
    (A2, A2 @ circle, "after: only one pair still is"),
]):
    ax.plot(*shape, color=PURPLE, lw=1.6)
    for pair, colours, style, names in [
        (V2e, (TEAL, TEAL), "-", (r"$v_1$", r"$v_2$")),
        (W2e, (AMBER, AMBER), "--", (r"$w_1$", r"$w_2$")),
    ]:
        for i in range(2):
            tip = M @ pair[:, i]
            ax.annotate("", xy=tip, xytext=(0, 0),
                        arrowprops=dict(arrowstyle="-|>", color=colours[i], lw=2, ls=style))
            ax.annotate(names[i], xy=tip * 1.12, color=colours[i], fontsize=11, ha="center")
    ax.set_title(f"{title}\n" +
                 rf"$\angle(v_1,v_2)={angle(M @ V2e):.1f}°$   " +
                 rf"$\angle(w_1,w_2)={angle(M @ W2e):.1f}°$", fontsize=9.5)
    ax.set_xlim(-2.3, 2.3); ax.set_ylim(-2.3, 2.3)
    ax.set_aspect("equal"); ax.set_xticks([]); ax.set_yticks([]); ax.grid(False)
fig.tight_layout()
plt.show()

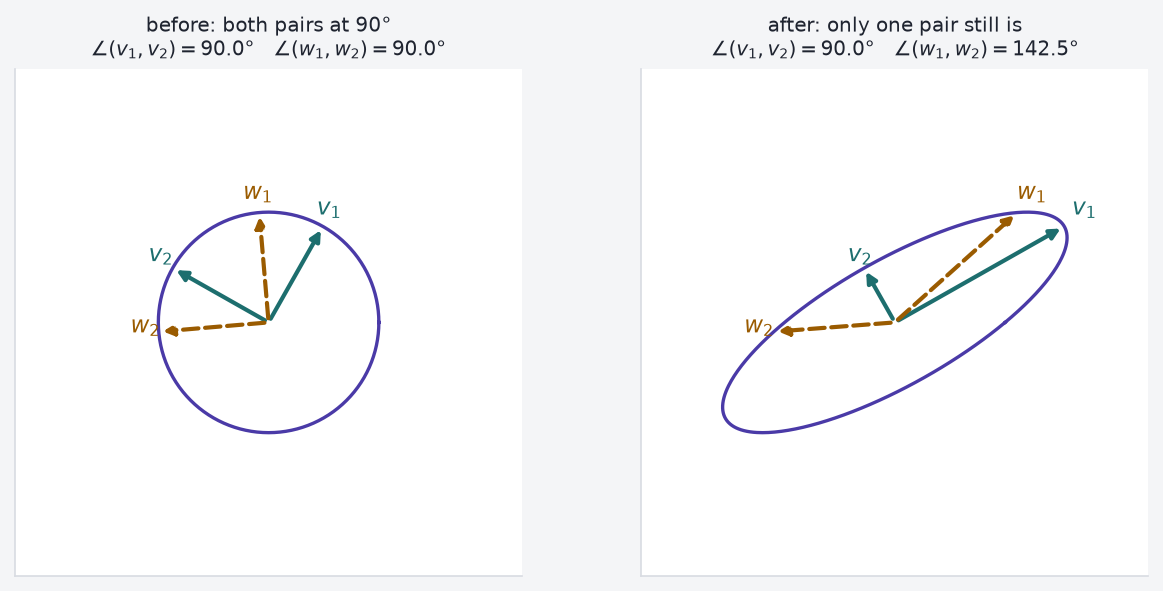

Figure 2: Left: two perpendicular pairs on the unit circle — the singular directions v₁, v₂ and an arbitrary pair w₁, w₂ rotated 34° from them. Right: their images. The singular pair lands on the ellipse axes and stays at 90°; the arbitrary pair closes to an acute angle.

Ninety degrees in, ninety degrees out for the singular pair; the other pair closes to an acute angle. So the decomposition always exists, and \(\Sigma\) is never a free choice — it is fixed by the matrix. The natural next question is what those numbers are worth.

The singular values are the stretch factors, and their ratio is the danger

Each \(\sigma_i\) is a length: how far the matrix stretches one particular direction. The largest, \(\sigma_1\), is the most any unit vector can be stretched, which is the definition of the matrix’s operator norm. The smallest is the least. If the smallest is zero, some direction is crushed to nothing and the matrix is rank-deficient — information went in and cannot come out.

The ratio of the two, \(\kappa(A) = \sigma_1 / \sigma_n\), is the condition number, and it is the number that decides whether solving \(Ax = b\) on a computer will give you an answer worth having. The rule of thumb is blunt: solving a system in double precision starts with about 16 correct digits and loses roughly \(\log_{10}\kappa\) of them. At \(\kappa = 10^{15}\) there is nothing left.

Seeing that happen needs a matrix that is genuinely hard and an answer you genuinely know. Filip is one of the Statistical Reference Datasets published by NIST’s Statistical Engineering Division: 82 measured \((x, y)\) pairs contributed by A. Filippelli, to be fitted by a degree-10 polynomial. NIST assembled the StRD collection to certify statistical software, so these datasets exist precisely to break solvers that look healthy on easy problems, and the certified coefficients were computed in multiple precision and quoted to 15 digits. That certification is what makes Filip usable here — a real least-squares problem with a real right answer, which no synthetic ill-conditioned matrix offers. The stakes are ordinary: a package that quietly returns the wrong polynomial here returns the wrong calibration curve in somebody’s laboratory, and nothing in its output says so.

The design matrix is the one the model implies: 82 rows, and column \(j\) holding \(x^j\) for \(j = 0 \dots 10\). Its singular values are the first thing to look at.

Code
x_f, y_f, beta_cert = filip.load_filip()
A_f = filip.filip_design(x_f)
s_f = np.linalg.svd(A_f, compute_uv=False)
kappa_f = s_f[0] / s_f[-1]

def sci(value, digits=2):
    """Render a number as LaTeX \\times 10^n -- mathtext turns "1.77e+15" into
    "1.77e + 15", which reads as arithmetic rather than a magnitude."""
    exponent = int(np.floor(np.log10(abs(value))))
    return rf"{value / 10 ** exponent:.{digits}f} \times 10^{{{exponent}}}"

fig, ax = plt.subplots(figsize=(7.2, 4.0))
ax.semilogy(np.arange(1, len(s_f) + 1), s_f, "o-", color=PURPLE, lw=1.8, ms=6)
ax.set_xlabel("index $i$"); ax.set_ylabel(r"$\sigma_i$")
ax.set_xticks(np.arange(1, len(s_f) + 1))
ax.annotate(rf"$\sigma_1 = {sci(s_f[0])}$", xy=(1, s_f[0]), xytext=(2.2, s_f[0] * 0.5),
            color=TEAL, fontsize=10)
ax.annotate(rf"$\sigma_{{11}} = {sci(s_f[-1])}$", xy=(11, s_f[-1]), xytext=(5.6, s_f[-1] * 3.0),
            color=AMBER, fontsize=10)
ax.set_title(rf"$\kappa(A) = \sigma_1/\sigma_{{11}} = {sci(kappa_f)}$", fontsize=11)
fig.tight_layout()
plt.show()

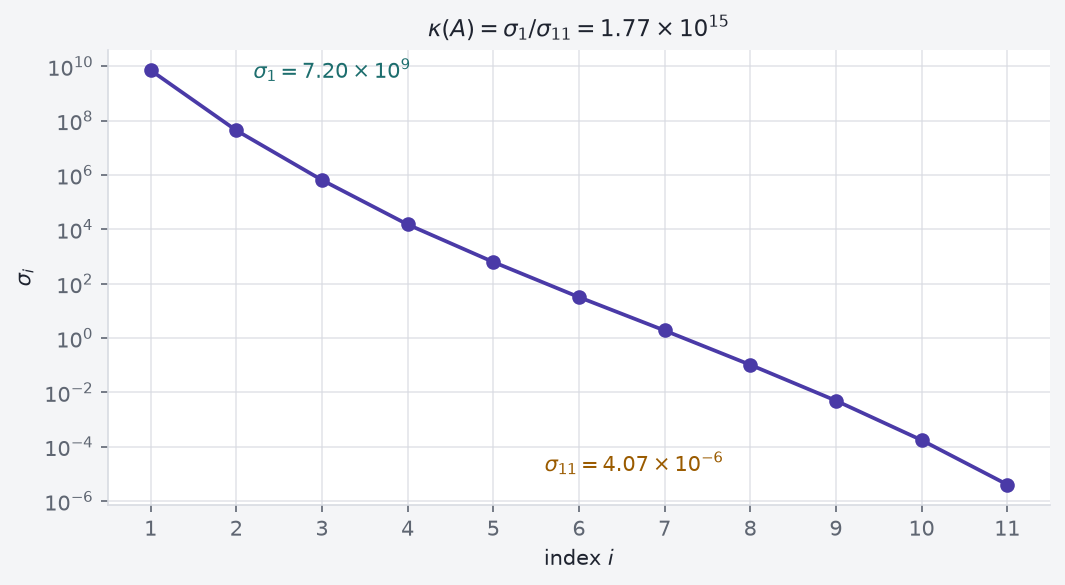

Figure 3: Singular values of Filip’s degree-10 design matrix, log scale. Fifteen orders of magnitude separate the first from the last, and the ratio is the condition number.

\(\kappa \approx 1.8 \times 10^{15}\), against the \(4.5 \times 10^{15}\) of resolution double precision carries in total. Before any solver runs, the spectrum says this fit sits at the edge of what the arithmetic can represent. So run three solvers and score them on the residual sum of squares, which NIST also certifies.

Code
rss = lambda b: float(np.sum((A_f @ b - y_f) ** 2))
rss_cert = rss(beta_cert)

solvers = {
    "normal equations, (AᵀA)⁻¹Aᵀy": np.linalg.solve(A_f.T @ A_f, A_f.T @ y_f),
    "QR least squares, np.linalg.lstsq": np.linalg.lstsq(A_f, y_f, rcond=None)[0],
    "pseudoinverse, np.linalg.pinv": np.linalg.pinv(A_f) @ y_f,
}

print(f"{'method':36s} {'RSS':>13s}  {'vs certified':>12s}")
print(f"{'NIST certified coefficients':36s} {rss_cert:13.6e}  {'—':>12s}")
for name, beta in solvers.items():
    print(f"{name:36s} {rss(beta):13.6e}  {rss(beta) / rss_cert:11.2f}×")

# Same data, same model, different basis: centre and scale x before building
# the powers, and the condition number falls by eleven orders of magnitude.
x_s = (x_f - x_f.mean()) / x_f.std()
A_s = np.vander(x_s, 11, increasing=True)
beta_s = np.linalg.pinv(A_s) @ y_f
print(f"\nrescaled design: kappa = {np.linalg.cond(A_s):.3e}")
print(f"rescaled pseudoinverse RSS = {float(np.sum((A_s @ beta_s - y_f) ** 2)):.6e}")
method                                         RSS  vs certified
NIST certified coefficients           7.958514e-04             —
normal equations, (AᵀA)⁻¹Aᵀy          1.059454e-03         1.33×
QR least squares, np.linalg.lstsq     1.071055e-03         1.35×
pseudoinverse, np.linalg.pinv         1.071055e-03         1.35×

rescaled design: kappa = 1.146e+04
rescaled pseudoinverse RSS = 7.958514e-04

Every solver on the raw design matrix fits the data about a third worse than the certified answer does, and no warning is raised by any of them. Then the last two lines change one thing — centre and scale \(x\) before raising it to powers — and \(\kappa\) drops from \(10^{15}\) to about \(10^4\), at which point the residual matches NIST’s certified value to every digit printed.

The ill-conditioning was never in the data. It was in the basis chosen to describe it, where \(x^{10}\) ranges over twelve orders of magnitude while \(x^0\) sits at 1. The singular values are what let you see that before trusting a number: a diagnostic, not just a description.

Rank-\(k\) truncation is a storage-versus-quality dial you can price

Same decomposition, opposite use. On Filip the small singular values were a warning; on a photograph they are an opportunity, because writing \(A = U\Sigma V^\mathsf{T}\) out term by term turns a matrix into a sum:

\[A = \sum_{i=1}^{r} \sigma_i\, u_i v_i^\mathsf{T},\]

a stack of rank-one layers, each one an outer product weighted by its singular value. Keep the first \(k\) layers and drop the rest and you have the rank-\(k\) truncation. It is not merely a good approximation: it is the best one any rank-\(k\) matrix can be, in least-squares error — the Eckart–Young theorem, which the companion post on matrix factorisations derives as an optimisation problem.

The photograph is skimage.data.astronaut(): a NASA photograph of astronaut Eileen Collins, taken as mission documentation and in the public domain, shipped inside scikit-image so nothing here needs a network. It earns its place by being an ordinary photograph rather than a pattern chosen to compress well — a face, fabric, hardware and a flat background, with no structure planted in it. In grayscale it is one matrix of 512 × 512, or 262,144 bytes raw. How few of those does the picture actually need? The answer matters wherever a thumbnail, a preview or a slow connection has to decide what to send first.

Code
photo = im.load_image()
U_p, s_p, Vt_p = im.svd(photo)

ranks_shown = [5, 20, 50, 100]
fig, axes = plt.subplots(1, 5, figsize=(11.5, 2.6))
axes[0].imshow(photo, cmap="gray", vmin=0, vmax=255)
axes[0].set_title("original\n262,144 bytes", fontsize=9)
for ax, k in zip(axes[1:], ranks_shown):
    ax.imshow(im.reconstruct(U_p, s_p, Vt_p, k), cmap="gray", vmin=0, vmax=255)
    stored = im.stored_bytes(*photo.shape, k, im.BYTES_INT16)
    ax.set_title(f"rank {k}\n{stored:,} bytes  ·  {WIDGET['psnr'][k - 1]:.1f} dB", fontsize=9)
for ax in axes:
    ax.set_xticks([]); ax.set_yticks([]); ax.grid(False)
fig.tight_layout()
plt.show()

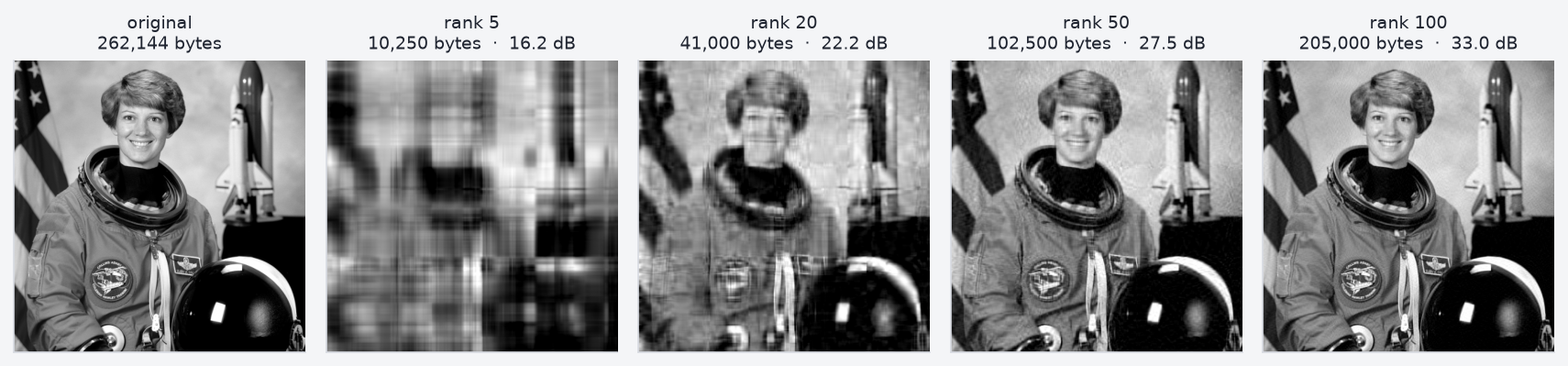

Figure 4: The same photograph at four truncation ranks, against the original. Rank 5 is a handful of bands; by rank 50 the face is unmistakable; rank 100 is close enough that the differences are in texture.

Rank 5 keeps 91.5% of the matrix’s squared Frobenius norm and still looks like nothing in particular — a warning about energy as a proxy for quality. By rank 50 the photograph is plainly itself. What each rank costs has a definite answer: a rank-\(k\) truncation means storing \(U_k\) (\(512k\) numbers), \(V_k\) (another \(512k\)) and \(k\) singular values, so \(k(m + n + 1)\) numbers against \(mn\) bytes for the raw pixels.

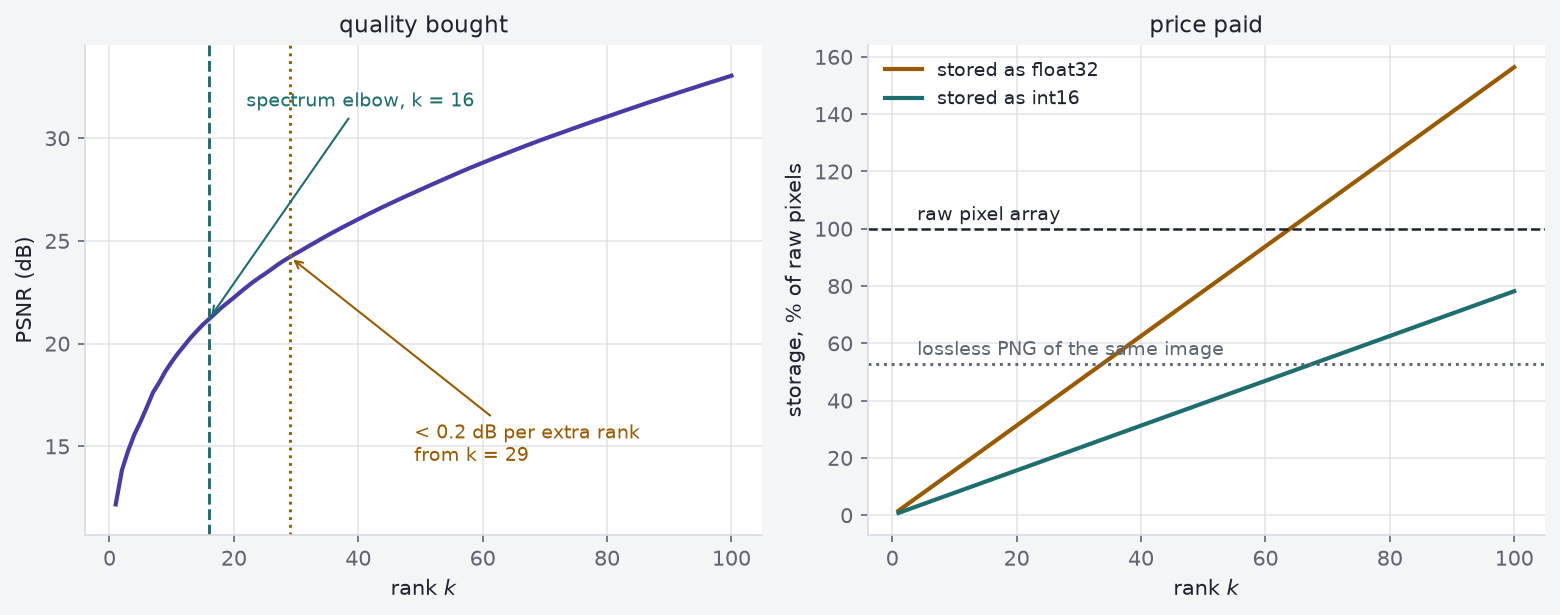

Code
k_axis = np.arange(1, WIDGET["maxRank"] + 1)
psnr = np.array(WIDGET["psnr"])
elbow = WIDGET["elbow"]
marginal = im.marginal_rank(psnr)

# The rank at which float32 factors stop saving anything at all. Derived, so it
# cannot go stale if the image or MAX_RANK changes.
crossover = int(np.flatnonzero(np.array(WIDGET["fracF32"]) >= 1.0)[0] + 1)

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(10.5, 4.2))

ax1.plot(k_axis, psnr, color=PURPLE, lw=2)
ax1.axvline(elbow, color=TEAL, ls="--", lw=1.4)
# The curve rises left to right, so the free space is above it on the right and
# below it on the right. Anchor both labels to the range rather than to psnr[0],
# which is the minimum.
lo, hi = psnr[0], psnr[-1]
ax1.annotate(f"spectrum elbow, k = {elbow}", xy=(elbow, psnr[elbow - 1]),
             xytext=(elbow + 6, hi - 0.8), color=TEAL, fontsize=9, va="top",
             arrowprops=dict(arrowstyle="->", color=TEAL))
ax1.axvline(marginal, color=AMBER, ls=":", lw=1.4)
ax1.annotate(f"< 0.2 dB per extra rank\nfrom k = {marginal}", xy=(marginal, psnr[marginal - 1]),
             xytext=(marginal + 20, lo + 4.0), color=AMBER, fontsize=9, va="top",
             arrowprops=dict(arrowstyle="->", color=AMBER))
ax1.set_ylim(lo - 1.5, hi + 1.5)
ax1.set_xlabel("rank $k$"); ax1.set_ylabel("PSNR (dB)")
ax1.set_title("quality bought", fontsize=11)

ax2.plot(k_axis, np.array(WIDGET["fracF32"]) * 100, color=AMBER, lw=2, label="stored as float32")
ax2.plot(k_axis, np.array(WIDGET["fracI16"]) * 100, color=TEAL, lw=2, label="stored as int16")
ax2.axhline(100, color=INK, ls="--", lw=1.2)
ax2.annotate("raw pixel array", xy=(4, 103), color=INK, fontsize=9)
ax2.axhline(WIDGET["pngBytes"] / WIDGET["rawBytes"] * 100, color=MUTED, ls=":", lw=1.4)
ax2.annotate("lossless PNG of the same image", xy=(4, WIDGET["pngBytes"] / WIDGET["rawBytes"] * 100 + 3),
             color=MUTED, fontsize=9)
ax2.set_xlabel("rank $k$"); ax2.set_ylabel("storage, % of raw pixels")
ax2.set_title("price paid", fontsize=11)
ax2.legend(frameon=False, fontsize=9, loc="upper left")

fig.tight_layout()
plt.show()

for k in ranks_shown:
    print(f"k={k:4d}  PSNR {psnr[k - 1]:5.2f} dB   energy {WIDGET['energy'][k - 1] * 100:6.3f}%"
          f"   int16 {WIDGET['fracI16'][k - 1] * 100:6.1f}% of raw"
          f"   float32 {WIDGET['fracF32'][k - 1] * 100:6.1f}%")
Figure 5: Left: reconstruction quality against rank, with the elbow of the singular value spectrum marked. Right: what the factors cost, as a fraction of the raw pixel array, under two storage choices. The float32 line crosses the raw-pixel baseline inside this range, so past that point the factorisation saves nothing.
k=   5  PSNR 16.21 dB   energy 91.492%   int16    3.9% of raw   float32    7.8%
k=  20  PSNR 22.24 dB   energy 97.830%   int16   15.6% of raw   float32   31.3%
k=  50  PSNR 27.50 dB   energy 99.349%   int16   39.1% of raw   float32   78.2%
k= 100  PSNR 33.04 dB   energy 99.818%   int16   78.2% of raw   float32  156.4%

The left panel shows where the returns stop: the spectrum bends at \(k = 16\) — the point furthest below a line drawn across the first 100 ranks, so it moves if you widen the window — and from \(k = 29\) onward each extra rank buys under a fifth of a decibel. The right panel is the part people skip. Stored naively as float32 the factors reach the size of the raw image at rank 64, and by rank 100 they take 156% of what you were trying to compress. Quantised to int16 — which the widget below does, at a quality cost too small to see — rank 50 costs 39% of raw for 27.5 dB.

Widget 2 — the rank dial 100 triplets, 452 KB

The page ships the leading 100 singular triplets, not 100 images. Every rank you land on is rebuilt in the browser from those factors, which is the same trick that makes truncation useful in the first place: the generator is far smaller than what it generates.

Caveat: this is not JPEG

Truncated SVD is the best rank-\(k\) approximation of a matrix. It is not the best image compressor, and the gap is not close.

Code
import io
from PIL import Image

pil = Image.fromarray(np.round(photo).astype("uint8"))
buf = io.BytesIO()
pil.save(buf, format="JPEG", quality=5)
jpeg_bytes = len(buf.getvalue())
jpeg_back = np.asarray(Image.open(io.BytesIO(buf.getvalue()))).astype(float)

k_ref = 20
svd_bytes = im.stored_bytes(*photo.shape, k_ref, im.BYTES_INT16)
print(f"SVD rank {k_ref}: {svd_bytes:,} bytes, {psnr[k_ref - 1]:.2f} dB")
print(f"JPEG quality 5: {jpeg_bytes:,} bytes, {im.psnr(photo, jpeg_back):.2f} dB")
SVD rank 20: 41,000 bytes, 22.24 dB
JPEG quality 5: 6,858 bytes, 25.92 dB

JPEG at its worst setting uses about a sixth of the bytes and still scores higher. It knows it is compressing an image: it works on local 8 × 8 blocks, discards high spatial frequencies the eye barely registers, and entropy-codes the rest. The SVD knows only that it has a matrix, and spends its budget on structure spanning the whole picture. Reach for truncation when the low-rank structure is itself what you care about, not when you want a smaller file.

The same dial, on ratings

Where low-rank structure is the point, the same truncation becomes a model. MovieLens 100k is 100,000 ratings on a 1–5 scale from real users of the MovieLens site, collected by the GroupLens group at the University of Minnesota, who ran the service partly to gather exactly this data for recommender research. As a matrix it is 943 users by 1,682 films and only about 6% filled — nearly every entry is a rating nobody gave. Predicting those wrong costs little each time and a lot in aggregate: a recommendation ignored, a film that never surfaces.

Truncation belongs here for a reason unrelated to storage. Taste is not 1,682-dimensional. If a few dozen latent factors explain most of what separates viewers, the ratings matrix is nearly low rank, and keeping the leading \(k\) layers keeps the signal while dropping one person’s mood on one evening. Where that boundary sits is empirical, so hold out 10% of the ratings and score reconstructions against them.

Code
ranks_ml = np.array(MOVIES["ranks"])
rmse_ml = np.array(MOVIES["rmse"])

fig, ax = plt.subplots(figsize=(7.2, 4.0))
ax.semilogx(ranks_ml, rmse_ml, "o-", color=PURPLE, lw=1.8, ms=5)
ax.axhline(MOVIES["baseline_rmse"], color=MUTED, ls="--", lw=1.3)
ax.annotate("baseline: user + film offsets only", xy=(1.15, MOVIES["baseline_rmse"] + 0.0012),
            color=MUTED, fontsize=9)
ax.scatter([MOVIES["best_rank"]], [MOVIES["best_rmse"]], s=90, facecolor="none",
           edgecolor=TEAL, lw=2, zorder=5)
ax.annotate(f"best: k = {MOVIES['best_rank']}, RMSE {MOVIES['best_rmse']:.4f}",
            xy=(MOVIES["best_rank"], MOVIES["best_rmse"]),
            xytext=(210, MOVIES["best_rmse"] - 0.0011), ha="right",
            color=TEAL, fontsize=9.5, arrowprops=dict(arrowstyle="->", color=TEAL))
ax.set_xlabel("truncation rank $k$"); ax.set_ylabel("held-out RMSE (stars)")
ax.set_xticks([1, 3, 10, 30, 100, 200]); ax.set_xticklabels([1, 3, 10, 30, 100, 200])
fig.tight_layout()
plt.show()

print(f"{MOVIES['n_train']:,} train / {MOVIES['n_test']:,} test ratings, "
      f"{MOVIES['density'] * 100:.1f}% of the matrix observed")

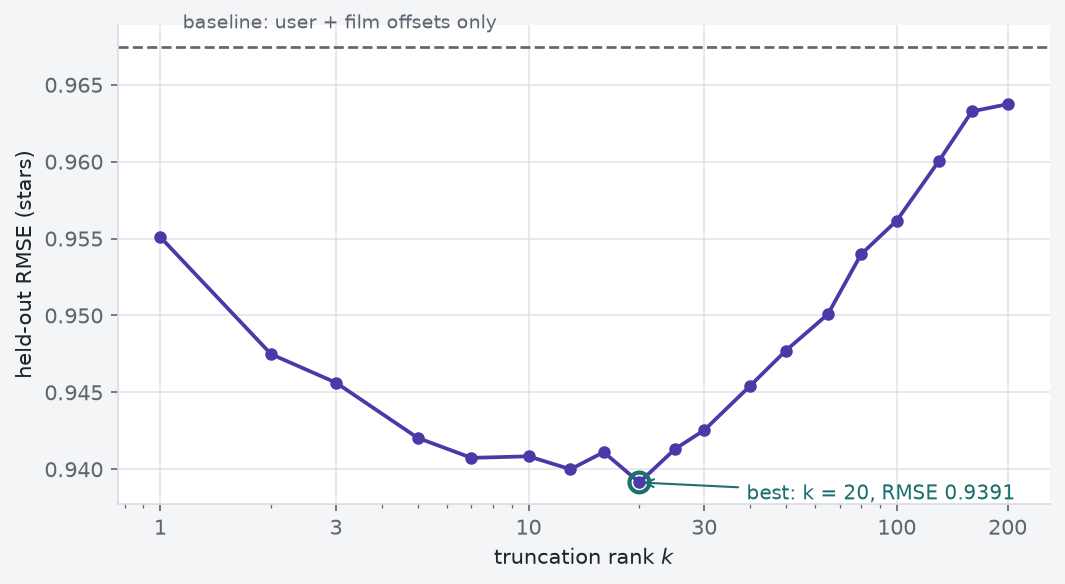

Figure 6: Held-out RMSE against truncation rank on MovieLens 100k, after removing per-user and per-film offsets. Too few ranks and the model has not learned taste; too many and it is memorising noise in the training ratings.
90,072 train / 9,928 test ratings, 5.7% of the matrix observed

The curve is a U, and that is the point. The photograph’s PSNR rose forever, because there the target was the matrix itself. Here the target is ratings the model has never seen, so past \(k = 20\) the extra layers fit the training ratings better and the held-out ratings worse. Rank has stopped being a compression setting and become a capacity knob.

The same dial, on ill-posed systems

Filip’s tiny singular values return here. Solving \(Ax = b\) through the SVD means computing \(x = \sum_i (u_i^\mathsf{T}b / \sigma_i) v_i\), and dividing by a \(\sigma_i\) of \(4 \times 10^{-6}\) amplifies whatever noise sits in that direction by a quarter of a million. Dropping the terms whose \(\sigma_i\) falls below a threshold is what np.linalg.pinv does by default — the same operation as dropping image layers, aimed at stability instead of storage. It trades a little bias for an answer that does not move when the data twitches, which is why it has a name of its own in the inverse problems literature: truncated SVD regularisation.

Squaring the matrix to compute it throws away half your digits

The derivation above reads like a recipe: form \(A^\mathsf{T}A\), diagonalise it, take square roots. Nobody does this, and Filip shows why in one line of output.

Squaring a matrix squares its condition number. If \(A\) has singular values \(\sigma_i\) then \(A^\mathsf{T}A\) has eigenvalues \(\sigma_i^2\), so \(\kappa(A^\mathsf{T}A) = \kappa(A)^2\): a matrix merely awkward at \(\kappa = 10^8\) becomes unsolvable at \(10^{16}\). The damage lands where it is least visible, on the small singular values — precisely where rank and regularisation decisions get made.

Code
sigma_svd = np.linalg.svd(A_f, compute_uv=False)
sigma_ata = np.sqrt(np.clip(np.linalg.eigvalsh(A_f.T @ A_f), 0, None))[::-1]

print(f"kappa(A)      = {np.linalg.cond(A_f):.3e}")
print(f"kappa(AᵀA)    = {np.linalg.cond(A_f.T @ A_f):.3e}\n")
print(f"{'i':>3s} {'np.linalg.svd':>16s} {'via eigh(AᵀA)':>16s} {'relative error':>15s}")
for i in (0, 4, 7, 8, 9, 10):
    rel = abs(sigma_ata[i] - sigma_svd[i]) / sigma_svd[i]
    print(f"{i + 1:3d} {sigma_svd[i]:16.6e} {sigma_ata[i]:16.6e} {rel:15.2e}")
kappa(A)      = 1.768e+15
kappa(AᵀA)    = 3.304e+23

  i    np.linalg.svd    via eigh(AᵀA)  relative error
  1     7.196912e+09     7.196912e+09        3.98e-16
  5     6.311973e+02     6.311976e+02        4.83e-07
  8     1.039405e-01     1.842912e+00        1.67e+01
  9     4.981348e-03     4.498695e-01        8.93e+01
 10     1.755634e-04     6.451898e-02        3.66e+02
 11     4.070735e-06     0.000000e+00        1.00e+00

The largest singular value survives to full precision. The smallest does not survive at all: routed through \(A^\mathsf{T}A\) it comes back as exactly zero, so the matrix looks rank-deficient when it is not, while \(\sigma_{10}\) is too large by a factor of several hundred. Any rank decision taken from that column would be wrong. Working on \(A\) directly, np.linalg.svd puts \(\sigma_{11}\) at 4.071e-06 — small, but real.

LAPACK never forms \(A^\mathsf{T}A\). It squeezes \(A\) into bidiagonal form using Householder reflections — orthogonal, so they leave every length and therefore every singular value untouched — and only then diagonalises, iteratively, on the bidiagonal matrix.

flowchart LR
  A["<b>A</b><br/>m × n, dense"] -->|"Householder reflections<br/>left and right"| B["<b>B</b><br/>bidiagonal<br/>same singular values"]
  B -->|"implicit QR sweeps<br/>(Golub–Kahan)"| S["<b>Σ</b><br/>diagonal"]
  B -.->|"reflections<br/>accumulated"| UV["<b>U</b>, <b>V</b><br/>orthogonal factors"]
  S --> R["A = UΣVᵀ"]
  UV --> R
Figure 7: How a dense SVD is actually computed. Every arrow on the top row is an orthogonal transformation, so the singular values are identical at each stage; the condition number is never squared.

Which algorithm you want depends on how much of the decomposition you need.

method cost when to use it
full SVD — np.linalg.svd, LAPACK gesdd \(O(mn \min(m, n))\) you need every singular value, or the full \(U\) and \(V\), and the matrix fits in memory
eigendecomposition of \(A^\mathsf{T}A\) \(O(mn^2 + n^3)\), at \(\kappa^2\) effectively never — the cost saving is small and the accuracy loss is the one shown above
Lanczos — scipy.sparse.linalg.svds \(O(k \cdot \mathrm{nnz}(A))\) per restart \(k \ll n\) and the matrix is sparse, or reachable only as a matrix–vector product
randomized SVD — sklearn.utils.extmath.randomized_svd \(O(mnk)\) \(k \ll n\), dense and large, and a small probabilistic error on the trailing singular values is acceptable

The bottom two rows are why a recommender on a hundred million ratings is tractable at all: nobody needs all 512 layers of the photograph, and nobody needs all 943 of MovieLens.

Back to the photograph

The claim at the top was that a photograph is mostly redundant, that one factorisation finds the redundancy without being told what a face is, and that the trade can be priced. All three are now numbers. The elbow of this image’s spectrum sits at rank 16 out of 512, and a rank-16 reconstruction holds 97.2% of the matrix’s squared norm and 21.2 dB of quality for 12.5% of the raw bytes, a compression ratio of 8.0× chosen by nothing but the size of the singular values. Push to rank 50 and you get 27.5 dB at 39% of raw, which is where the dial stops being generous.

The pricing cuts both ways, and that is the honest ending. A lossless PNG of the same photograph is 53% of raw with no quality lost, and JPEG beats every rank on this chart. What the SVD gives you is not the smallest file. It is one ordering of a matrix’s structure, strongest first, that answers three questions with the same arithmetic: which layers to keep, which directions a solver will destroy, and how many latent factors a taste model supports before it starts memorising. The circle became an ellipse; everything after that was reading off the axes.

Data and attribution

Photograph — skimage.data.astronaut(), distributed with scikit-image. A NASA photograph of astronaut Eileen Collins, in the public domain as a work of the US federal government. Used here converted to grayscale at its native 512 × 512.

Filip — NIST Statistical Reference Datasets, Linear Least Squares collection; data contributed by A. Filippelli, NIST. Certified values computed by NIST in multiple precision. A work of the US federal government, in the public domain. The 82-observation file is cached in this post’s assets/ directory exactly as published.

MovieLens 100k — GroupLens Research, University of Minnesota; F. M. Harper and J. A. Konstan, “The MovieLens Datasets: History and Context”, ACM TiiS 5(4), 2015. GroupLens’ terms do not permit redistribution, so the raw archive is downloaded on demand into a gitignored directory and is not committed; only the derived RMSE curve in widget-data/movielens.json is.

Both widgets, the figures and the prose read the same committed payload, so a number here cannot disagree with a number on a slider. Regenerating everything is documented in this post’s README.md.
